Cable Assemblies

QPC Fiber Optic manufactures a wide range of fiber optic and hybrid cable assemblies / harnesses, with or without QPC productcontent. We draw from our decades of experience to help our customers choose the appropriate connectors, cable, fiber, and accessories to design customcable assemblies. Or, we build customer specified cable assemblies to print.QPC documents each custom cable assembly we build with a Product Definition Package, which includes a detailed drawing with bill of materials, as well as labeling, testing, and packaging requirements to ensure consistency from build to build. The capabilities listed below are constantly expanding based on technology improvements and market demands.

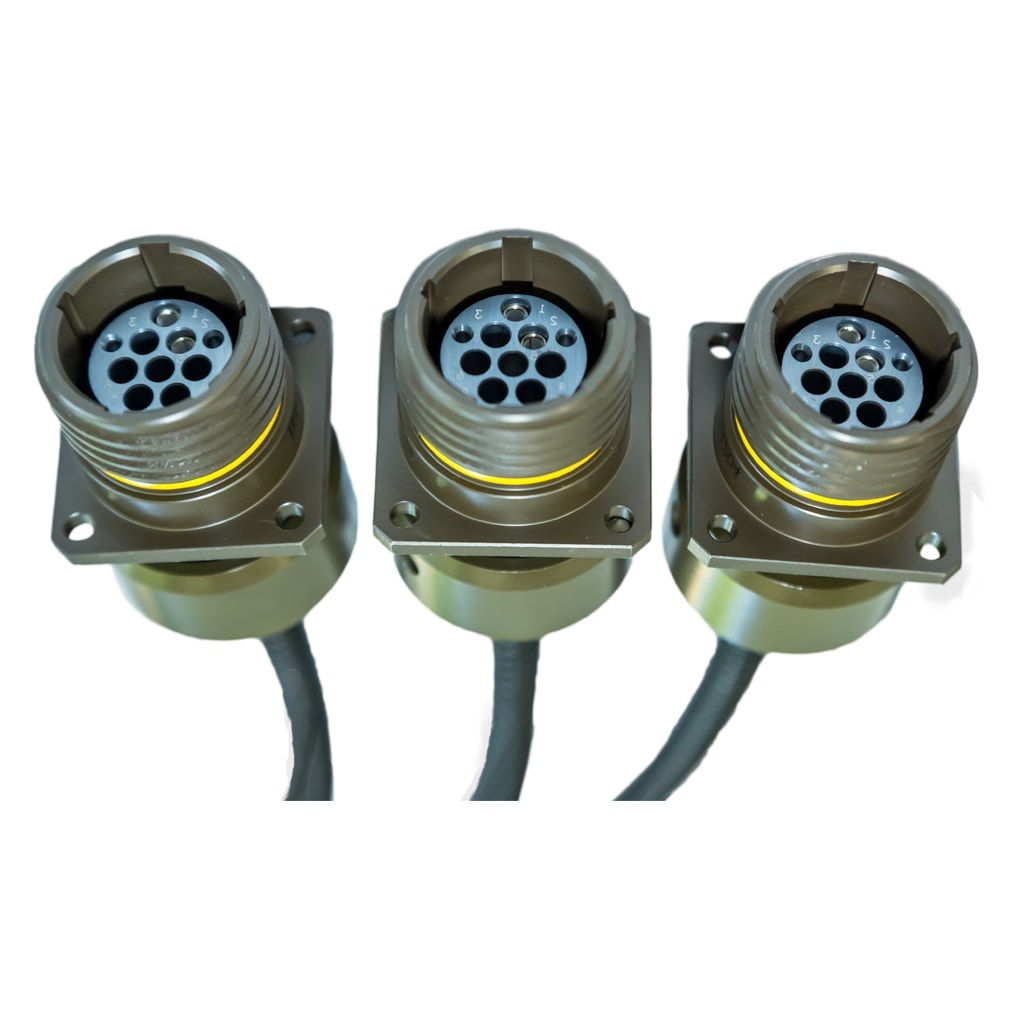

  • Connector Types: All QPC Connectors (Proprietary & Industry Standard), Mil Spec (M28876, D38999, M83526, M29504 Termini), ARINC, Tyco / Deutsch MC3 MKII, Esterline / Souriau Elio, ODVA LC Interface, E2000, LC, ST, SC, FC
  • Cable Types: Mil Spec (M85045), Tactical, Aerospace, Shipboard, Distribution, Armored / Non-Armored, MSHA Rated, ABS Approved, Hybrid, Conduit Systems, and Specialty Application Cables
  • Standard Fiber Types: Small Core Single Mode (5/125μm), Standard Single Mode (9/125μm), OM1 -Graded Index Multimode (62.5/125μm), OM2 / OM3 / OM4 -Graded Index Multimode (50/125μm), Graded Index Multimode (100/140μm)
  • Specialty Step Index Multimode Fiber:
    • Core / Cladding Size: 105/125μm to 1000/1100μm
    • Construction: Silica/Silica or Silica/Hard Clad
    • Wavelength: 190nm -2400nm
    • Numerical Aperture: 0.12 -0.38
    • Temperature Range: -190°C to + 350°C
    • Coatings: Polyimide, Nylon, Tefzel
    • High Power and Sensing Applications

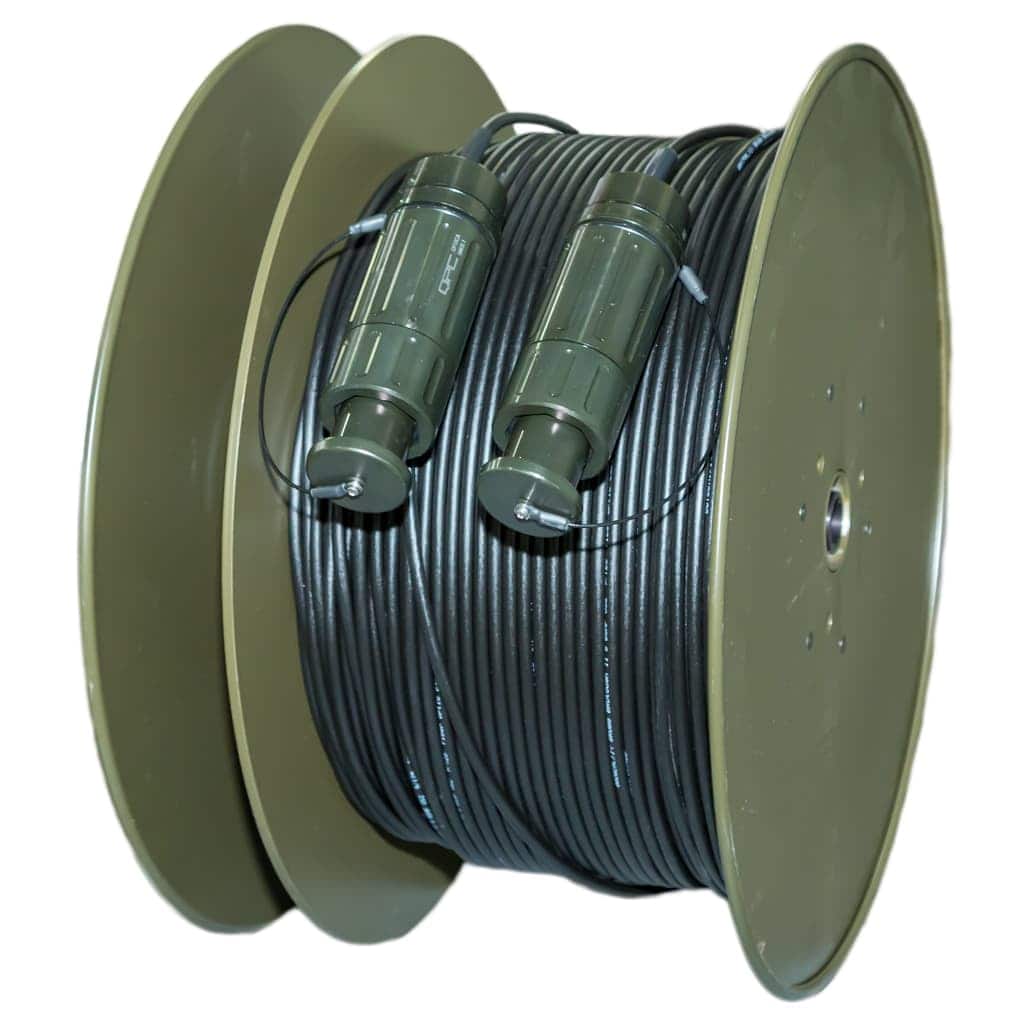

  • Accessories: In-Line Splitters / Couplers / Switches, Integrated Hardware / Patch Panels, Reels, Breakouts, and Pulling Grips
